Three Side Seal Pouch Making Machine

SSP 350 Delta / SSP 450 Delta

Three Side Seal Pouch Making Machine

SSP 350 Delta / SSP 450 Delta

When you are looking for efficient pouch making machines, you may give your preference to the top performing three side seal pouch making machine and the best models available to choose from are SSP 350 Delta and SSP 450 Delta. They have a servo motor for indexing and accuracy, and are capable of reaching a high speed of up to 150 strokes per minute. What’s remarkable for these models is that they are microprocessor controlled with digital displays.

Features

This Machine converts a lay flat sheet of Laminated film of PET-PE , BOPP-PE into three side sealed pouches with various attachments. It’s a high-speed pouch machine with a maximum speed of 150 cycles / min.

  • High Speed up to 150 strokes/min
  • Servo Motor for Indexing and Accuracy
  • Microprocessor Controlled with Digital Display
  • Keyboard Setting for speed, Size & Count
  • Backlit Display for Operating Parameters
  • Photocell Control to Convert Printed Film
  • Vertical Unwind stand
  • Two Continuous Lateral Sealing Jaws
  • One set Cross Sealing Jaws
  • User Friendly Single Control Panel
Attachments

The following optional attachments / tools are available to add features to the machine and make variety of bag structures:

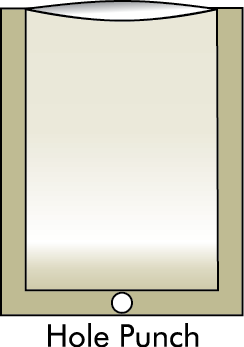

  • Hole punch

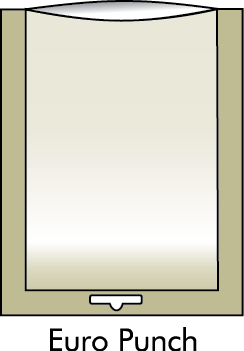

  • Euro punch
  • Web Aligner
  • Automatic Tension control with load cell and digital display
  • K-seal
  • Pneumatic Cross perforation
  • Pneumatic Cooling station
  • Handle punch

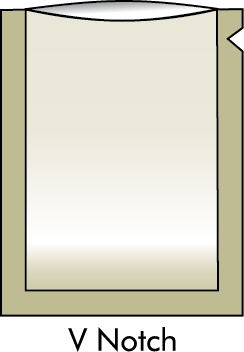

  • V notch
download brochure

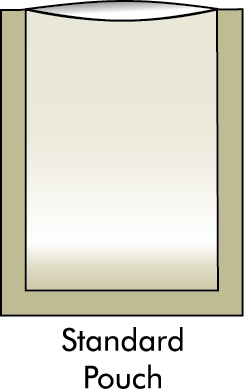

TYPES OF BAGS THAT CAN BE MADE
Specifications
Model Max. Web Max.Pouch Max. Speed Connected Weight App. Dimensions
  Width mm Size mm Strokes/ min Load KW Kg WxLxH cm
SSP 250 Delta 520 250 x 320 150 6.5 1450 132x533x183
SSP 350 Delta 720 350 x 420 150 7.5 1650 146x533x163
SSP 450 Delta 920 450 x 520 130 8.5 1850 164x533x183
