High Speed T-shirt High Speed Twin Track T-shirt

High Speed T-shirt Bag Making Machine

VTX 350 Ultima

High Speed T-shirt Bag Making Machine

VTX 350 Ultima

T-shirt bag makers are available in various models. You can opt for the right one keeping in mind the specific function and as per the width of the bag which you intend to manufacture. You can opt for HSP-VX 450 Delta which is a high-speed bag making machine that can convert up to 200 bags per minute. If you want to get a production rate of 440 bags per minute, then you should opt for the HSP-VTX-350 Delta model which can run at a maximum speed of strokes per minute.

Features

The High speed Twin Track T-shirt bag making machine Model VTX-350 Ultima is able to run at a maximum speed of 300 Strokes/minute and thus get a production of 600 Bags/min. You can simultaneously run 2 Printed Pre-Gusseted Tubular Roll on the machine. The machine is equipped with Two Servo Motor & Drive System with Dual Photocell for sensing the Print Mark and thus it is possible to convert 2 Rolls simultaneously

The film is Sealed and Cut using a Hot Knife and stacked together Automatically into bunches of 50 bags. Once the Batch count is reached, the Gripper function on the machine will take the Bunch of bags forward to the Online Punching station where the Handle Punching is done and you get the ready finished bags on the Auto Conveyor.

  • High speed of 300 cycles / min x 2 lanes
  • Dual servo system for accuracy and indexing
  • Two photocells to convert 2 printed webs simultaneously
  • Microprocessor controlled with digital display
  • Finished bags ready for packing
  • Safety interlocks on PLC for Air pressure and temperature to reduce wastage
  • Pneumatic Surface driven unwind to reduce tension
  • Automatic loading system for easy operation
  • Air shafts on unwinder for quick changeover
  • Auto stacking conveyor for punched bags

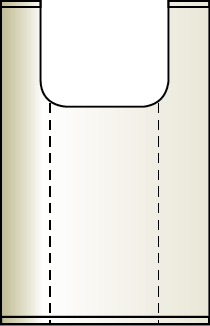

TYPES OF BAGS THAT CAN BE MADE
Specifications
Model Lane Servo Max. Web Bag Size  Bag Size Thickness Max. Speed Connected Approx. Comp. Air Dimension
      Width Max. mm Min. mm microns Strokes/min Load KW Weight Kg cfm WxLxH cms
VTX 350 Ultima 2 2 350 350 x 700 170 x 350 10 - 50 300 16 2900 25 - 30 170x700x180
