High Speed Twin Track T-shirt Bag Making Machine

HSP-VTX 350 Delta (twin track)

High Speed Twin Track T-shirt Bag Making Machine

HSP-VTX 350 Delta (twin track)

The High speed Twin Track T-shirt bag making machine Model VTX-350 Ultima is able to run at a maximum speed of 300 Strokes/minute and thus get a production of 600 Bags/min. You can simultaneously run 2 Printed Pre-Gusseted Tubular Roll on the machine. The machine is equipped with Two Servo Motor & Drive System with Dual Photocell for sensing the Print Mark and thus it is possible to convert 2 Rolls simultaneously

The film is Sealed and Cut using a Hot Knife and stacked together Automatically into bunches of 50 bags. Once the Batch count is reached, the Gripper function on the machine will take the Bunch of bags forward to the Online Punching station where the Handle Punching is done and you get the ready finished bags on the Auto Conveyor.

Features

The High speed Twin Track T-shirt bag making machine Model HSP-VTX-350 Delta is able to run at a maximum speed of 220 Strokes/minute and thus get a production of 440 Bags/min. You can simultaneously run 2 Printed Pre-Gusseted Tubular Roll on the machine. The machine is equipped with Two Servo Motor & Drive System with Dual Photocell for sensing the Print Mark and thus it is possible to convert 2 Rolls simultaneously

The film is Sealed and Cut using a Hot Knife and stacked together Automatically into bunches of 50 bags. Once the Batch count is reached, the Gripper function on the machine will take the Bunch of bags forward to the Online Punching station where the Handle Punching is done and you get the ready finished bags on the Auto Conveyor

  • High Speed up to 200 strokes / min.
  • Finished Bags ready for Packing
  • Servo Motor for Indexing and Accuracy
  • Stacking & Conveying of Finished Bags
  • Automatic Removal of Cut-out Waste
  • On-Line Blocking, Punching and Conveying
  • Photocell to Convert Printed Web

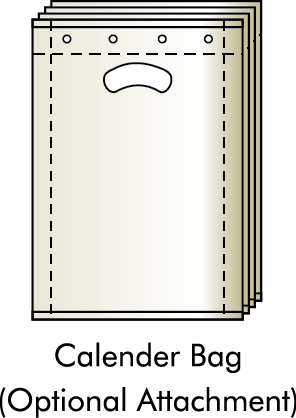

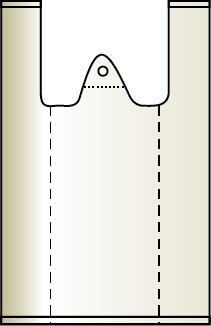

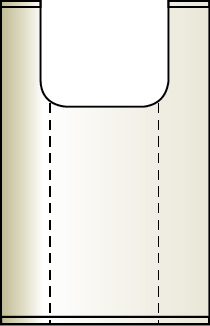

TYPES OF BAGS THAT CAN BE MADE
Specifications
Model Lane Servo Max. Web Max. Bag  Thickness Max. Speed Connected Approx. Comp. Air Dimension
      mm mm microns Strokes/min Load KW Weight Kg cfm WxLxH cms
HSP-VX 450 Delta 1 1 450 450 x 700 10 - 50 200 x 1 9.5 1800 20 - 25 130x575x180
HSP-VX 450 Delta 2 2 350 350 x 650 10 - 50 220 x 2 14 2800 30 - 35 170x575x181
