Automatic Soft Loop & Patch Handle Bag Machine

SLPH 800 Delta

Automatic Soft Loop & Patch Handle Bag Machine

SLPH 800 Delta

The Automatic machine will convert either a Tubular roll or a Lay flat film into a Side Seal bag and Attach the Loop handle or a Reinforced Patch handle Automatically inline on the machine. The machine is equipped with a Dual Servo System for higher productivity and to maintain tension on the film. The machine is capable of running upto a maximum speed of 100 Strokes/min.

Features

The Automatic machine will convert either a Tubular roll or a Lay flat film into a Side Seal bag and Attach the Loop handle or a Reinforced Patch handle Automatically inline on the machine. The machine is equipped with a Dual Servo System for higher productivity and  to maintain tension on the film. The machine is capable of running upto a maximum speed of 100 Strokes/min.

  • Reclosable Tape Applicator
  • Double Lip Sealer for Top Inside Fold
  • Auto Stacker
  • Pneumatic Euro (Hanger) Punch
  • Pneumatic Hole Punch Bank
  • Sheet Folding Device
  • Pneumatic Chicken Bag Attachment (Round Bottom)
  • Pneumatic Wicketing Attachment
  • Ultrasonic Seal Attachment with Pearl Insert
Attachments

The following optional attachments / tools are available to add features to the machine and make variety of bag structures:

  • Reclosable Tape Applicator
  • Double Lip Sealer for Top Inside Fold
  • Auto Stacker
  • Pneumatic Euro (Hanger) Punch
  • Pneumatic Hole Punch Bank
  • Sheet Folding Device
  • Pneumatic Chicken Bag Attachment (Round Bottom)
  • Pneumatic Wicketing Attachment
  • Ultrasonic Seal Attachment with Pearl Insert
download brochure

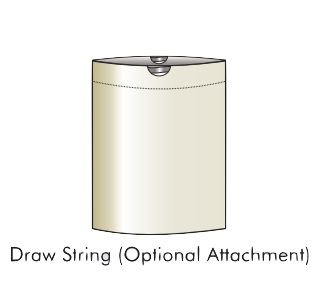

TYPES OF BAGS THAT CAN BE MADE
Specifications
Model Handle Bags Width Bags Length Tap Fold Bottom Gust Thickness Max. Speed Connected Weight Comp. Air Dimensions
  Type mm mm mm Max. mm Micron Bags/min Load KW Kg. cfm W x L x H cm
SLPH 800 Delta Soft Loop 280 - 500 250 - 600 70 - 75 75 50 - 90 80 14 3300 25 - 30 255 × 828 x 202
Patch 250 - 500 250 - 600 - 75 50 - 90 75
Die Cut 250 - 500 250 - 600 - 75 50 - 90 120
