Semi-Automatic Soft Loop Handle Bag Making Machine

SM 600

Semi-Automatic Soft Loop Handle Bag Making Machine

SM 600

This machine is used for attaching the Loop Handle to a Side Seal or Bottom Seal bag.

It is capable of giving a production of about 15-20 bags/min depending on the Operator. The machine is operated through a Foot switch which will Open the bag, Insert the Loop Film and seal both the handles in one stroke.

Features

This machine is used for attaching the Loop Handle to a Side Seal or Bottom Seal bag.

It is capable of giving a production of about 15-20 bags/min depending on the Operator. The machine is operated through a Foot switch which will Open the bag, Insert the Loop Film and seal both the handles in one stroke.

  • High & Consistent Output
  • Pneumatically Operated
  • Microprocessor Controlled with Digital Display
  • Programmable for Auto Cycle Mode
  • Batch Count & Total Count
  • Friction Brake on Roll Unwind

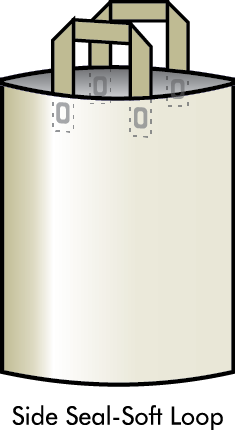

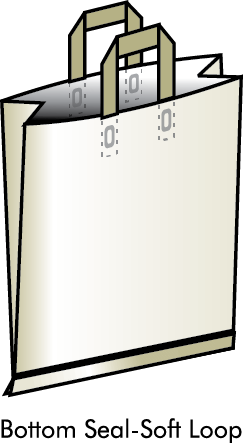

TYPES OF BAGS THAT CAN BE MADE
Specifications
Model Bag Width Bag Length Thickness Max. Speed Connected Weight Dimensions
  mm mm Microns Bags/min Load KW Kg WxLxH cms
SM 600 250 - 600 250 - 700 50 - 90 15 - 20 1.5 400 178 × 182 × 126
