Side Seal Bag making Machine

SS 600 DELTA / SS 800 DELTA / SS 1000 DELTA

Side Seal Bag making Machine

SS 600 DELTA / SS 800 DELTA / SS 1000 DELTA

This bag making machine has its own specialties. The side weld bag making machine can deliver up to 300 strokes per minute which is perfectly suitable for LDPE / HDPE / PP / BOPP films. Using various attachments available for this machine, you can make different sorts of bags just as bottom gusset, inside or outside lip former, handle punch, pre-sealer, lateral sealer, perforation, tape applicator for courier bags and more. Some of the top models available are SS 600 Delta, SS 800 Delta and SS 1000 Delta.


Features

The side seal bag making machine delivers up to 300 strokes / minute and is suitable for LDPE / HDPE / PP / BOPP films. There are a various attachments available for this machine to make a variety of bags like handle punch, pre sealer, bottom gusset, inside / outside lip former , lateral sealer, perforation, tape applicator for courier bags, web aligner etc.

  • High Speed up to 300 strokes/min.
  • Servo Motor for Indexing and Accuracy
  • Microprocessor Controlled with Digital Display
  • Keyboard Setting for Speed, Size & Count
  • Backlit Display for Operating Parameters
  • Photocell Control to convert Printed Rolls
  • Self Aligning Sealing Head
Attachments

The following optional attachments / tools are available to add features to the machine and make variety of bag structures:

  • Edge Guiding system (EPC)
  • Bottom Gusseting, Lip Making and Flap making
  • Reclosable Tape Applicator
  • Double Lip Sealer for Top Inside Fold
  • Auto Stacker
  • Pneumatic Handle Punch
  • Pneumatic Euro (Hanger) Punch
  • Pneumatic Hole Punch Bank
  • Sheet Folding Device
  • Pneumatic Chicken Bag Attachment (Round Bottom)
  • Pneumatic Wicketing Attachment
  • Ultrasonic Seal Attachment with Pearl Insert
download brochure

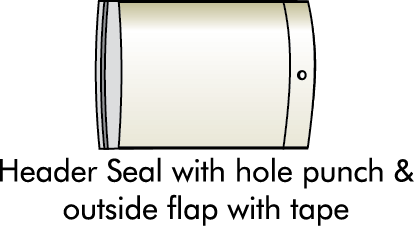

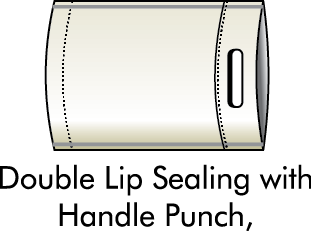

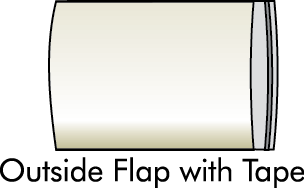

TYPES OF BAGS THAT CAN BE MADE

The following optional attachments / tools are available to add features to the machine and make variety of bag structures:

Specifications
Model Max.Web Draw Length mm Max. Speed Connected Approx Dimension
With mm Min. Max Strokes/min Load KW Weight Kg W x L x H cms
SS 600 Delta 610 75 – 600 300 7.5 1550 145x438x202
SS 800 Delta 810 75 – 600 300 8.0 1800 165x438x202
SS 1000 Delta 980 75-650 200 9.5 2000 190x438x202
